Wire Rod Products

Quality at the beginning of the production will pay dividends later. This is why our pay-offs can do more than just lead the wire of the coil into a single strand. With optimal pre-treatment of the wire, your drawing processes run more quickly and smoothly. Within our designs and developments we always have your entire wire production in mind.

Need technical support?

Wire Stress Relieving Devices

DEG-5/2

Wire diameter (low carbon) 5,0 – 8,0 mm

Wire diameter (high carbon)

Wire passing speed up to 8,0 m/s

Wire Rod Pre-Feeding Units

MRE

Wire diameter (low carbon) 5,5 – 18,0 mm

Wire diameter (high carbon) 5,5 – 10,0 mm

Wire passing speed ca. 0,15 m/s

Wire Rod Pre-Feeding Units

MRE-2

Wire diameter (low carbon) 5,5 – 18,0 mm

Wire diameter (high carbon) 5,5 – 12,0 mm

Wire passing speed ca. 0,15 m/s

Wire Stress Relieving Devices

DEG-5/1

Wire diameter (low carbon) 5,0 – 8,0 mm

Wire diameter (high carbon)

Wire passing speed up to 8,0 m/s

Wire Stress Relieving Devices

DEG-S7/1

Wire diameter (low carbon) 5,0 – 16,0 mm

Wire diameter (high carbon)

Wire passing speed up to 8,0 m/s

Wire Stress Relieving Devices

DEG-S7/2

Wire diameter (low carbon) 5,0 – 16,0 mm

Wire diameter (high carbon)

Wire passing speed up to 8,0 m/s

Wire Stress Relieving Devices

DEG-S7/EZ

Wire diameter (low carbon) 5,0 – 16,0 mm

Wire diameter (high carbon)

Wire passing speed up to 8,0 m/s

Spools

SKS

Wire diameter (low carbon) without

Wire diameter (high carbon)

Wire passing speed without

Rotating Die Holder

DZH-1s

Wire diameter (low carbon) 5,5 – 8,0 mm

Wire diameter (high carbon) 5,5 – 6,5 mm

Wire passing speed up to 4,0 m/s

Rotating Die Holder

DZH-2s

Wire diameter (low carbon) 5,5 – 18,0 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

Drying Systems

HDS

Wire diameter (low carbon) 5,5 – 8,0 mm (opt. greater)

Wire diameter (high carbon) 5,5 – 8,0 mm (opt. greater)Wire passing speed up to 4,0 m/s (depending on the degree of drying)

Wire Rod Protection Devices

DSK

Wire diameter (low carbon) 5,5 – 13,5 mm

Wire diameter (high carbon) 5,5 – 13,5 mm

Wire passing speed without

Wire Rod Protection Devices

DSK/S

Wire diameter (low carbon) 5,5 – 13,5 mm

Wire diameter (high carbon) 5,5 – 13,5 mm

Wire passing speed without

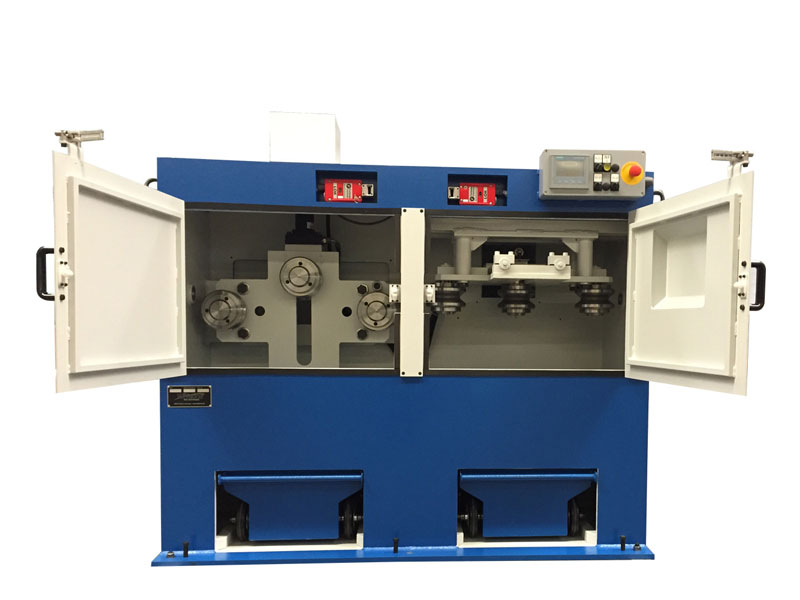

Bending Descaler

BBE-3/12

Wire diameter (low carbon) 5,5 – 13,5 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

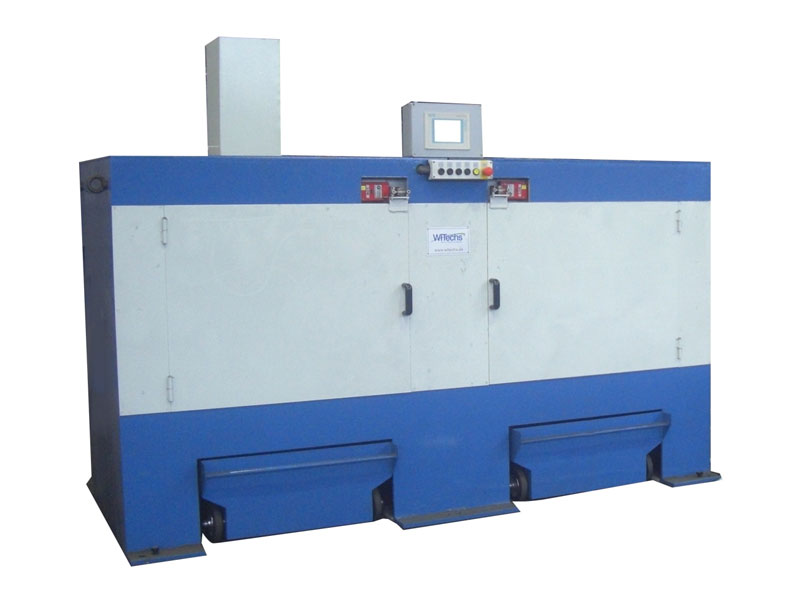

Bending Descaler

BBE-3/17

Wire diameter (low carbon) 5,5 – 18,0 mm

Wire diameter (high carbon) 5,5 – 13,0 mm

Wire passing speed up to 4,0 m/s

Bending Descaler

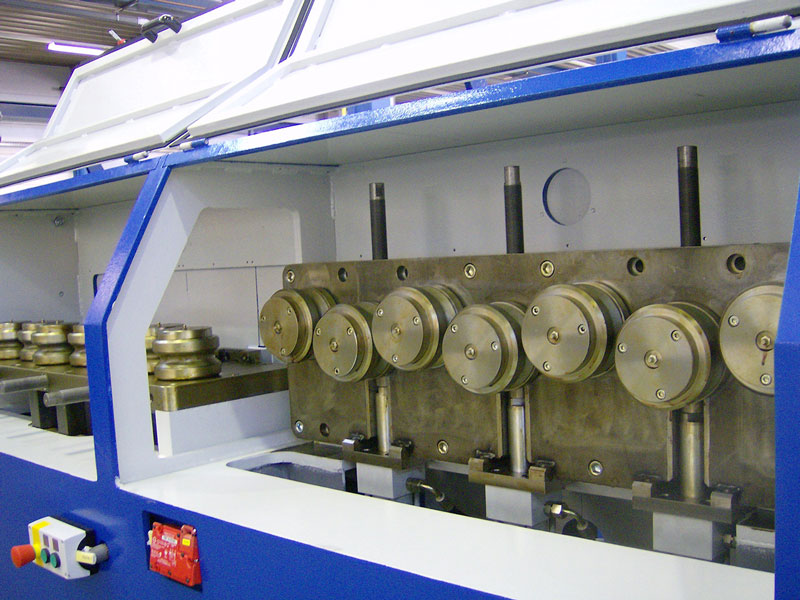

BDM-2S

Wire diameter (low carbon) 5,5 – 20,0 mm

Wire diameter (high carbon) 5,5 – 15,0 mm

Wire passing speed up to 10,0 m/s

Sanding Descaler

SEZ-2-450

Wire diameter (low carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire diameter (high carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire passing speed up to 4,0 m/s

Sanding Descaler

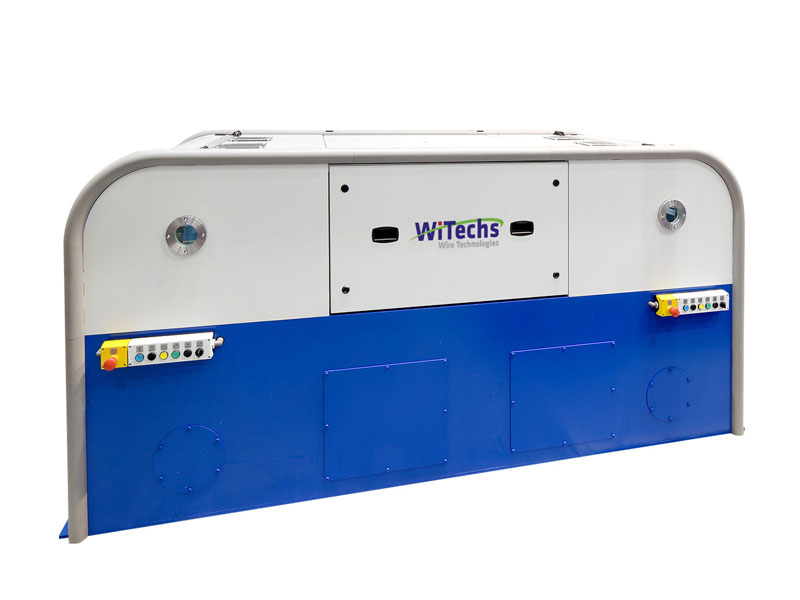

SEZ-4-300

Wire diameter (low carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire diameter (high carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire passing speed up to 2,4 m/s

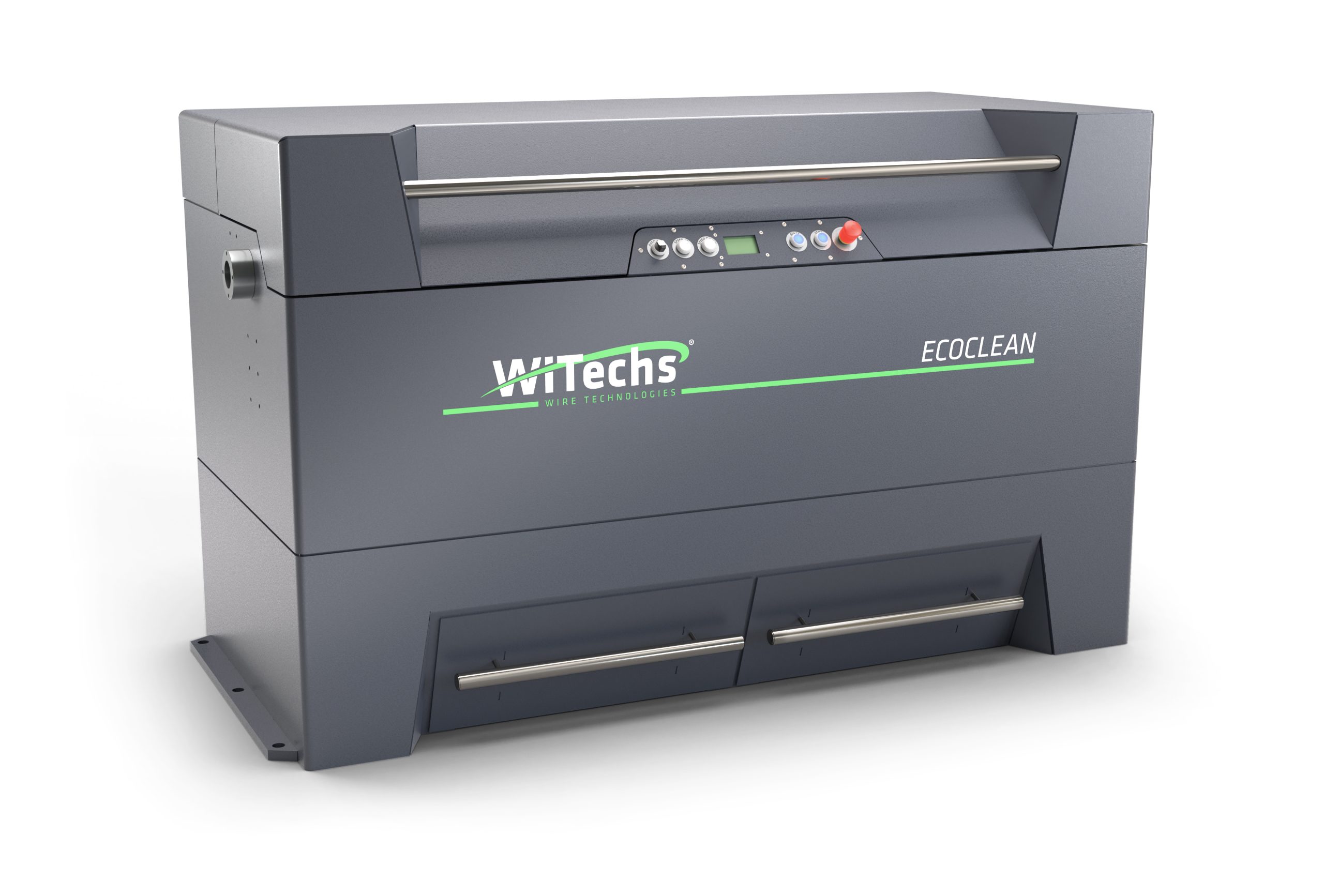

Brush Descaler

Ecoclean

Wire diameter: (low carbon): 3 – 10 mm

Wire diameter: (high carbon): 3 – 10 mm

Wire passing speed: up to 10,0 m/s

Brush Descaler

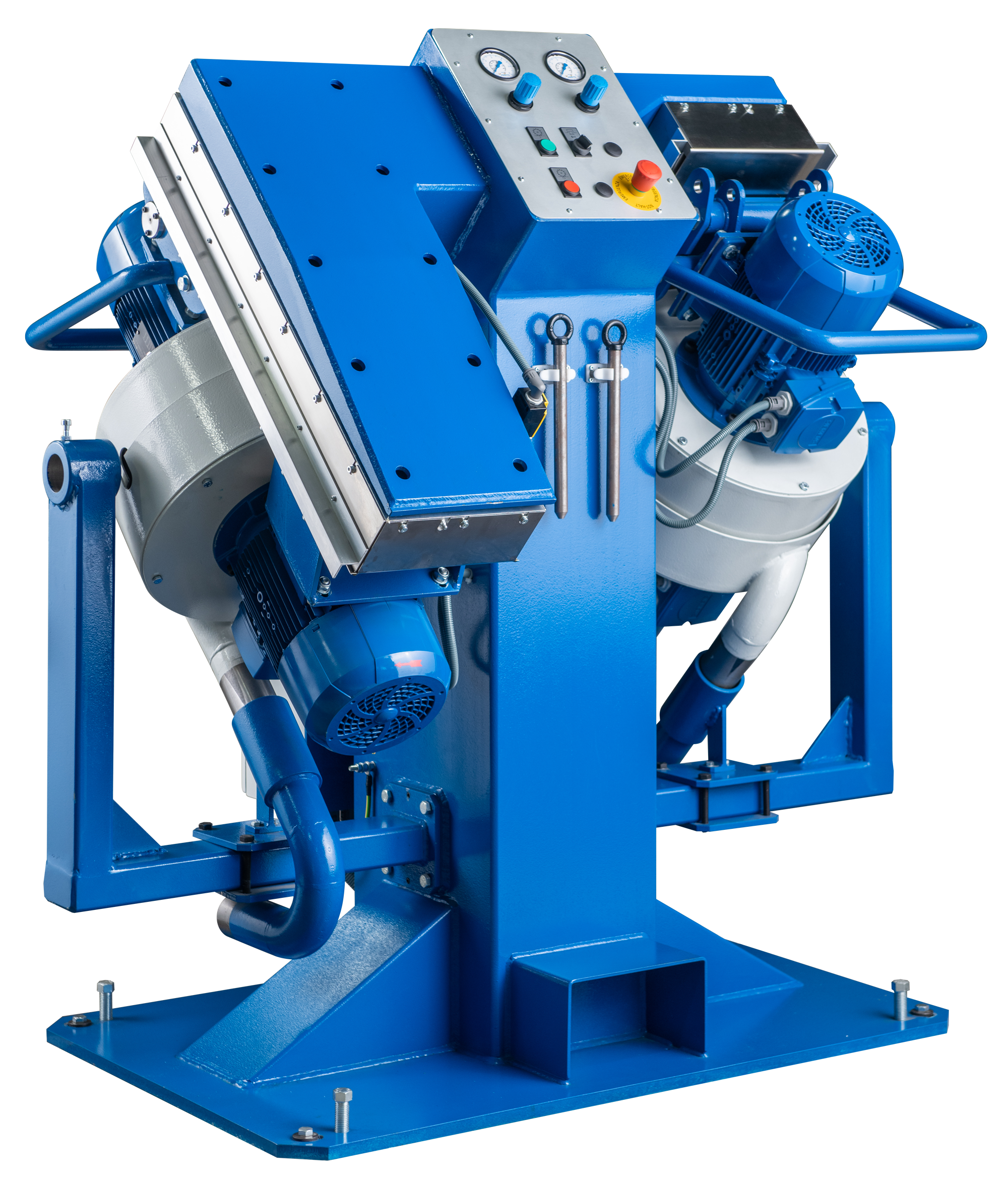

RWCB/400-2

Wire diameter (low carbon) 5,5 – 8,0 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

Brush Descaler

RWCB/400-3

Wire diameter (low carbon) 5,5 – 16,0 mm

Wire diameter (high carbon) 5,5 – 10,0 mm

Wire passing speed up to 4,0 m/s

Brush Descaler

WBE-6L

Wire diameter (low carbon) 5,5 – 10,0 mm (opt. 18 mm)

Wire diameter (high carbon) 5,5 – 10,0 mm (opt. 18 mm)

Wire passing speed up to 4,5 m/s

Wet Coating Machines

HBE-3302

Wire diameter (low carbon) 5,5 – 10,0 mm (greater on request)

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

Wet Coating Machines

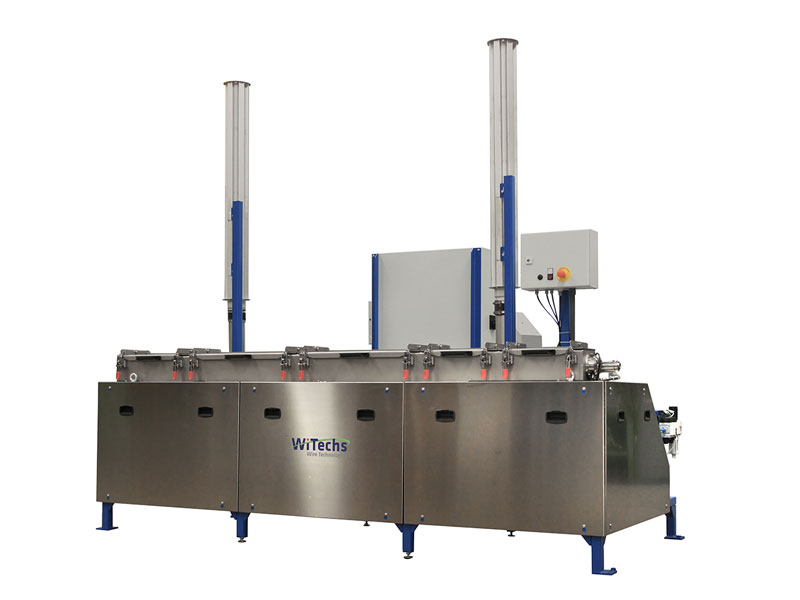

HSBE-3302

Wire diameter (low carbon) 5,5 – 10,0 mm (greater on request)

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

Dry Coating Machines

BSG/T

Wire diameter (low carbon) 5,5 – 20,0 mm

Wire diameter (high carbon) 5,5 – 20,0 mm

Wire passing speed up to 10,0 m/s

Dry Coating Machines

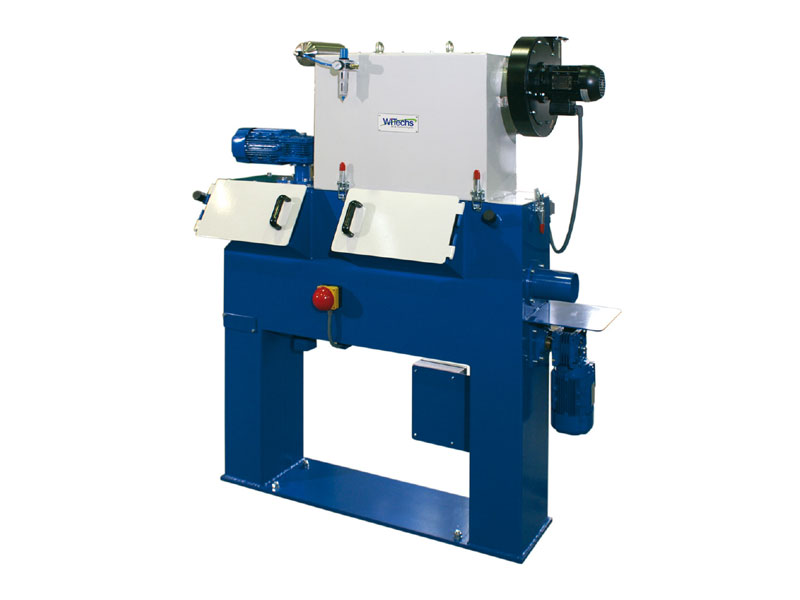

BSG/TF

Wire diameter (low carbon) 5,5 – 20,0 mm

Wire diameter (high carbon) 5,5 – 20,0 mm

Wire passing speed up to 10,0 m/s

Miscellaneous

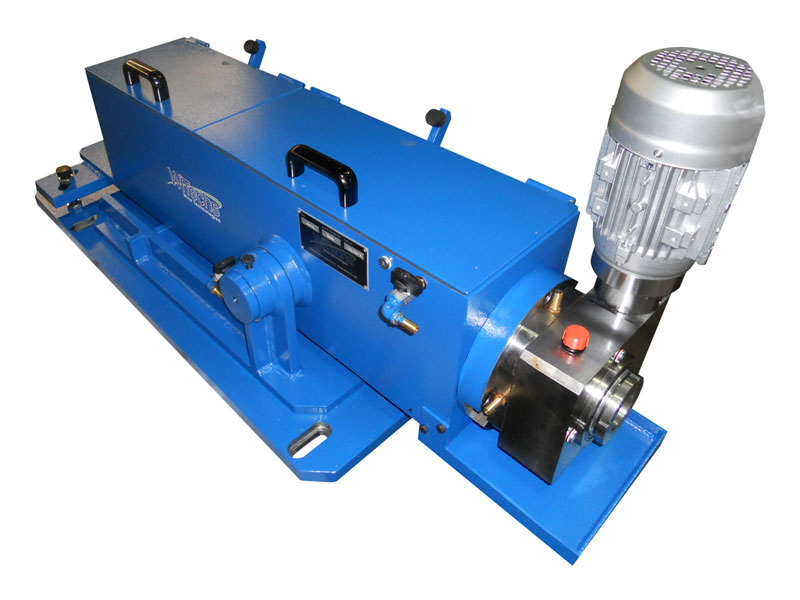

MKS-2

Wire diameter (low carbon) 5,5 – 18,0 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

Wet Cleaning Machines

HSE-1300

Wire diameter (low carbon) max. 10,0 mm (greater on request)

Wire diameter (high carbon) max. 10,0 mm (greater on request)

Wire passing speed max. 4,0 m/s

Wet Cleaning Machines

HSE-2800

Wire diameter (low carbon) max. 10,0 mm (greater on request)

Wire diameter (high carbon) max. 10,0 mm (greater on request)

Wire passing speed max. 4,0 m/s

Wet Cleaning Machines

HSRT-2600

Wire diameter (low carbon) max. 10,0 mm (greater on request)

Wire diameter (high carbon) max. 10,0 mm (greater on request)

Wire passing speed max. 18,0 m/s

Wet Cleaning Machines

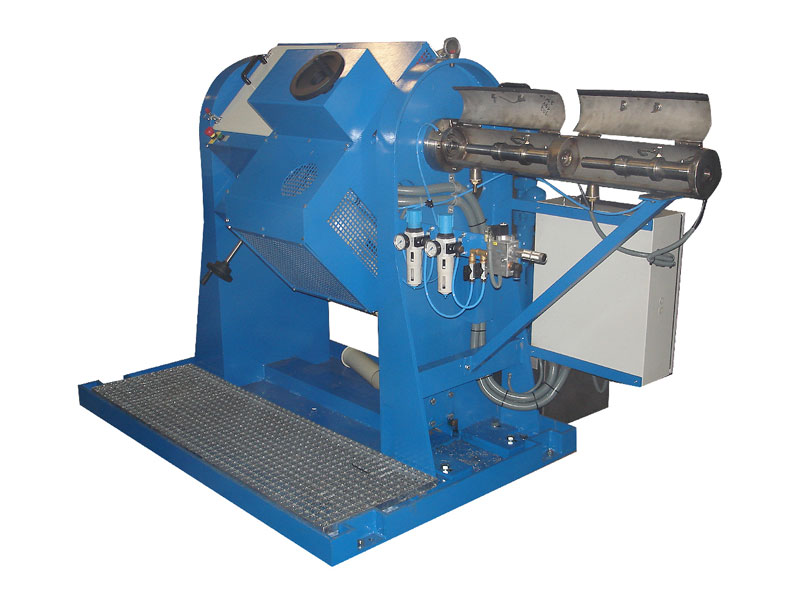

TBM/2B-N

Wire diameter (low carbon) max. 8,0 mm (greater on request)

Wire diameter (high carbon) max. 8,0 mm (greater on request)

Wire passing speed max. 8,0 m/s

Wire Rod Pre-Feeding Units

DEZ-1

Wire diameter (low carbon) 5,5 – 18,0 mm

Wire diameter (high carbon)

Wire passing speed ca. 0,15 m/s

Wire Rod Pre-Feeding Units

DEZ-1/2

Wire diameter (low carbon) 5,5 – 10,0 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed ca. 0,15 m/s

Overhead Pay-Offs

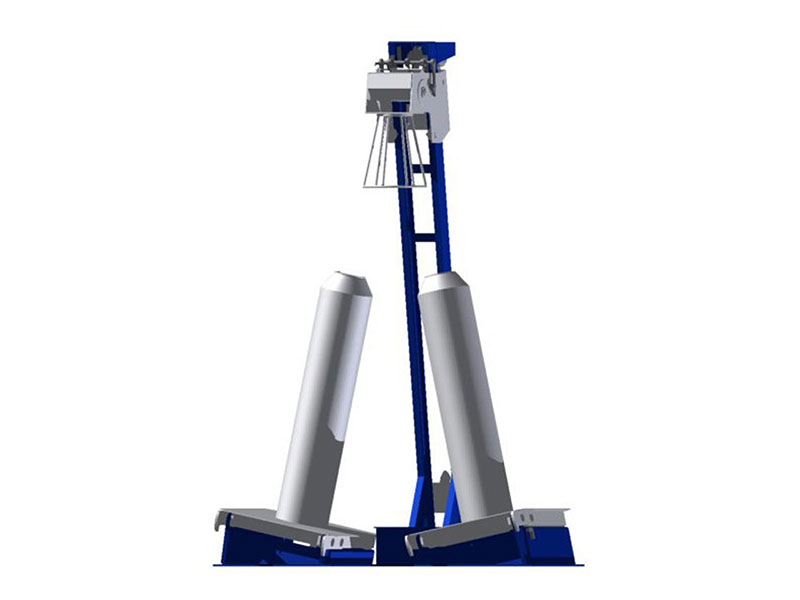

ÜKA-1/65

Wire diameter (low carbon) 5,5 – 6,5 mm

Wire diameter (high carbon)

Wire passing speed up to 4,0 m/s

Overhead Pay-Offs

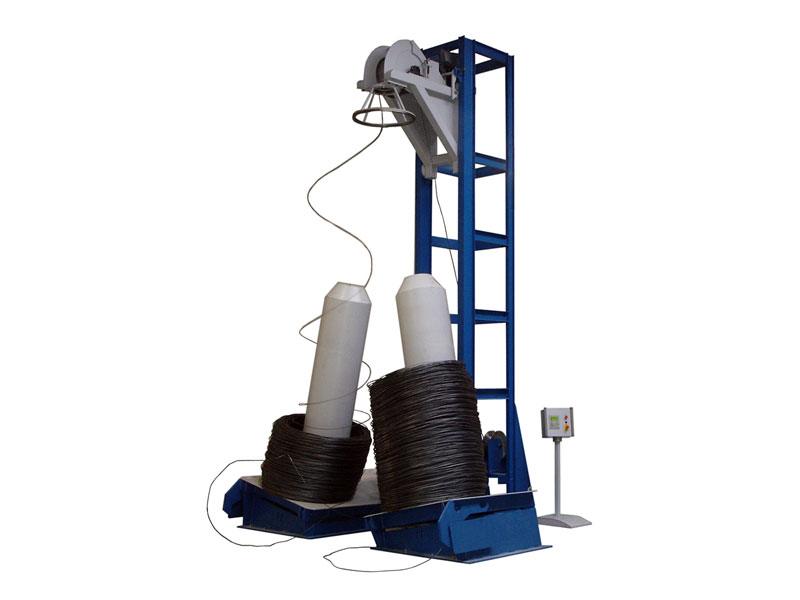

ÜKA-1

Wire diameter (low carbon) 5,5 – 13,5 mm

Wire diameter (high carbon)

Wire passing speed up to 6,0 m/s

Overhead Pay-Offs

ÜKA-1D

Wire diameter (low carbon)

Wire diameter (high carbon) 5,5 – 6,5 mm

Wire passing speed up to 4,0 m/s

Overhead Pay-Offs

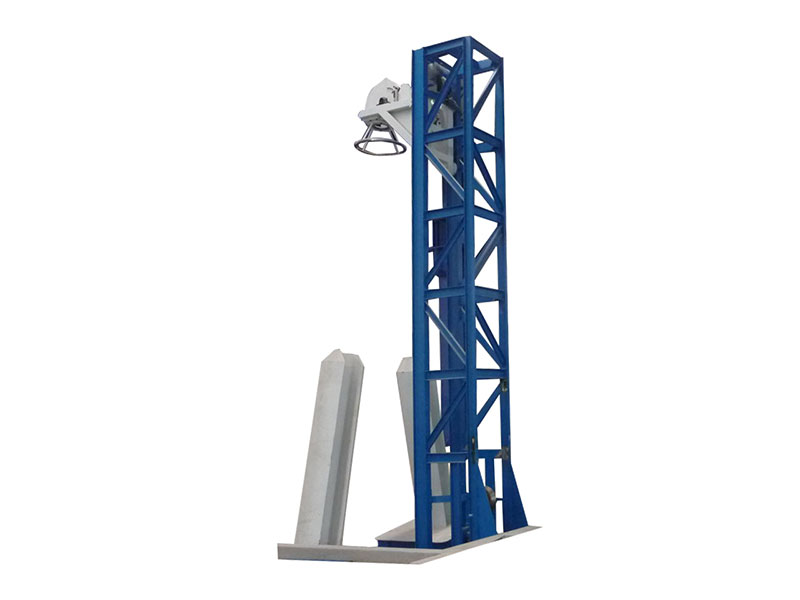

ÜKA-2

Wire diameter (low carbon) 5,5 – 16,0 mm

Wire diameter (high carbon)

Wire passing speed up to 10,0 m/s

Overhead Pay-Offs

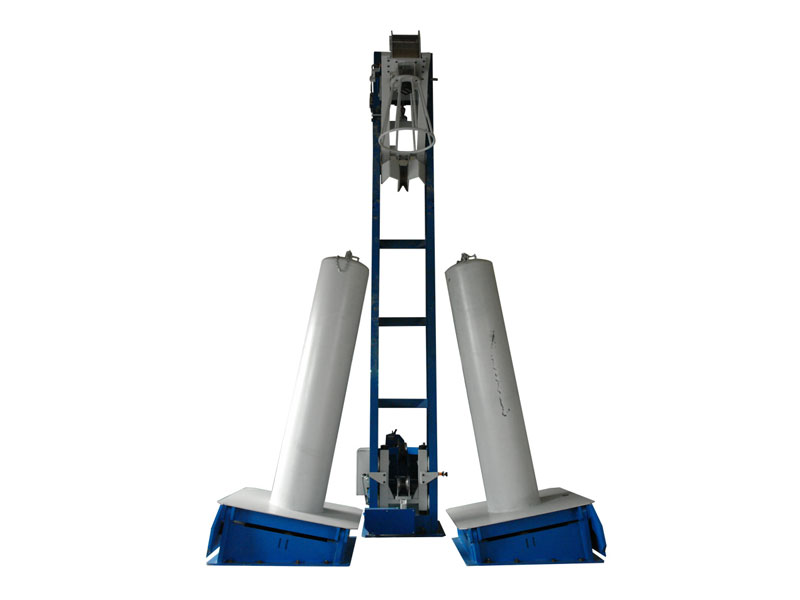

ÜKA-2D

Wire diameter (low carbon)

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

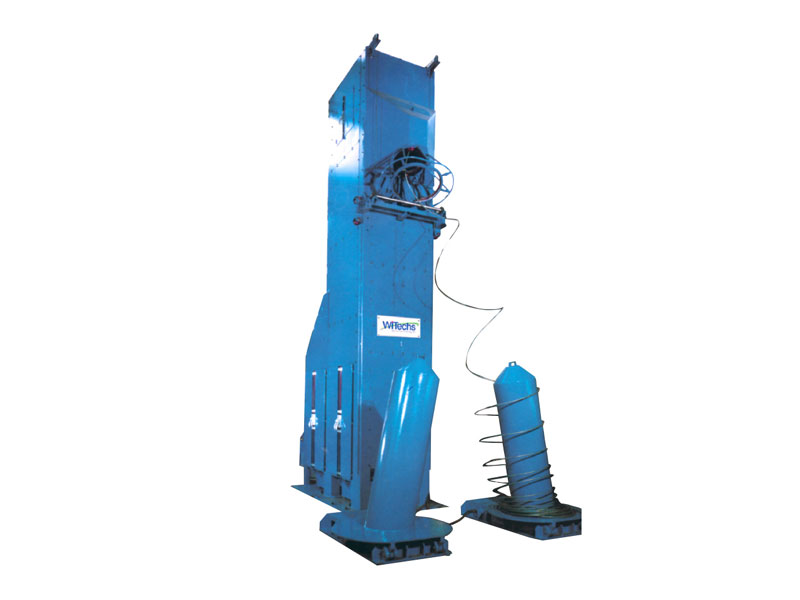

Overhead Pay-Offs

ÜKA-4

Wire diameter (low carbon) 5,5 – 19,0 mm

Wire diameter (high carbon)

Wire passing speed up to 10,0 m/s

Overhead Pay-Offs

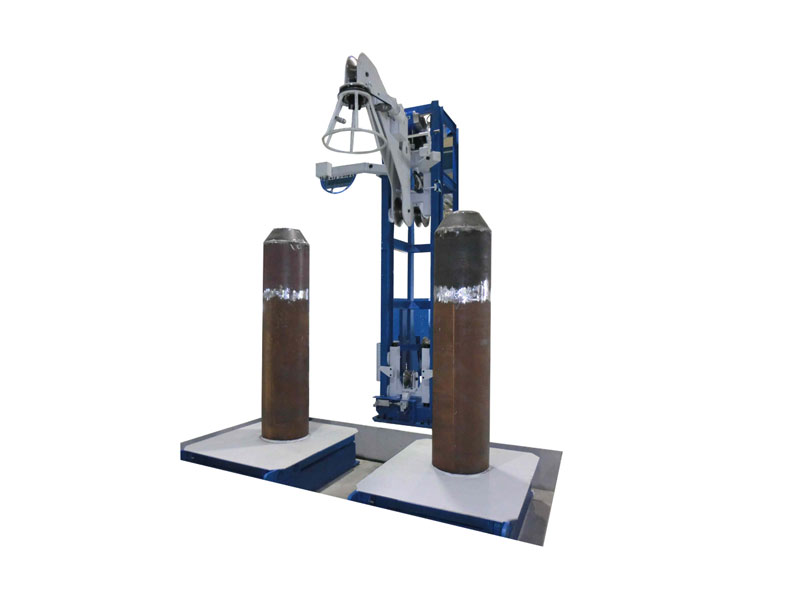

ÜKA-2/SBA

Wire diameter (low carbon) 5,5 – 8,0 mm

Wire diameter (high carbon) 5,5 – 6,5 mm

Wire passing speed up to 3,0 m/s

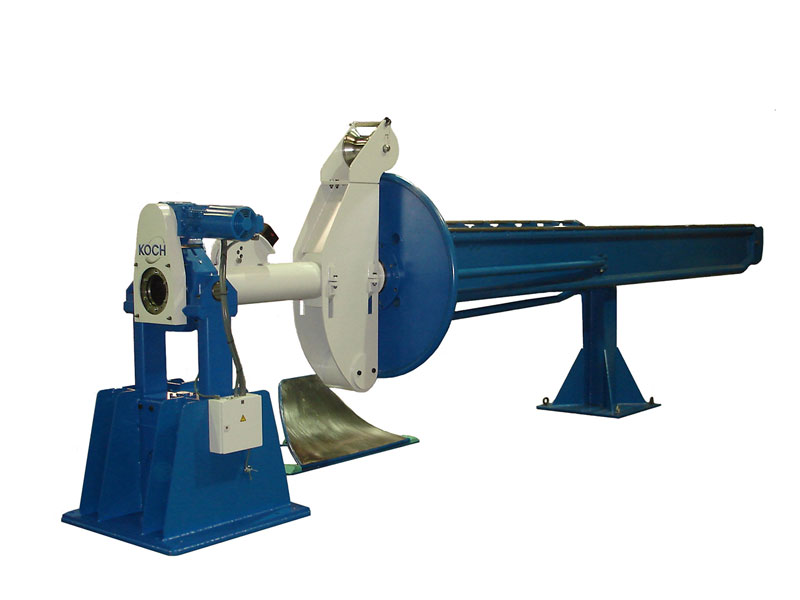

Horizontal Pay-Offs

HA-F/2

Wire diameter (low carbon) 7,0 – 16,0 mm

Wire diameter (high carbon) 5,5 – 14,0 mm

Wire passing speed up to 3,0 m/s

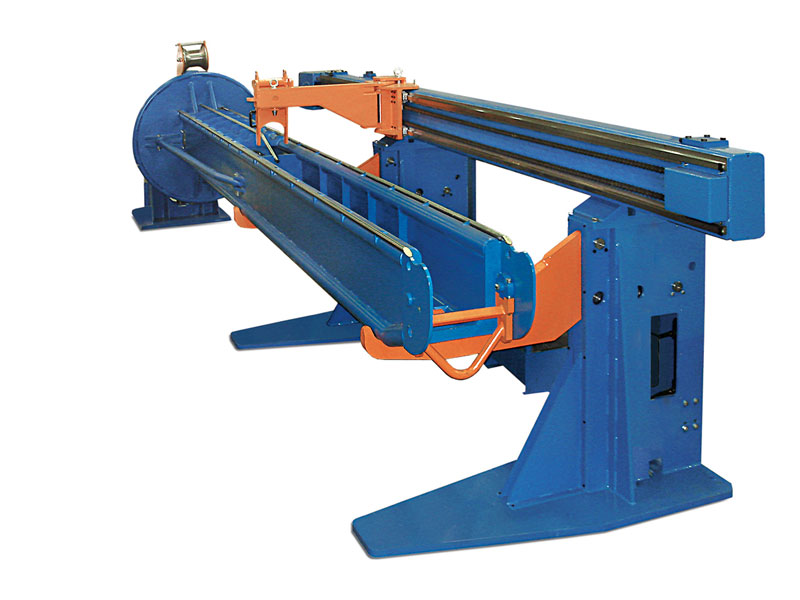

Horizontal Pay-Offs

HA-F + CVE

Wire diameter (low carbon) 7,0 – 16,0 mm

Wire diameter (high carbon) 5,5 – 14,0 mm

Wire passing speed up to 3,0 m/s

Horizontal Pay-Offs

ASH-2

Wire diameter (low carbon) 5,5 – 16,0 mm

Wire diameter (high carbon) 5,5 – 10,0 mm

Wire passing speed up to 5,0 m/s

Horizontal Pay-Offs

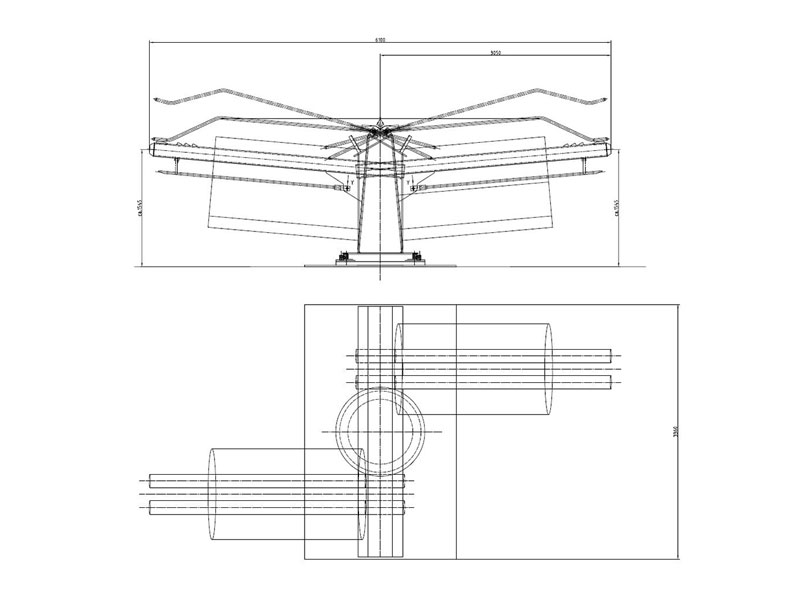

ASH-2D

Wire diameter (low carbon) 5,5 – 16,0 mm

Wire diameter (high carbon) 5,5 – 10,0 mm

Wire passing speed up to 5,0 m/s

Horizontal Pay-Offs

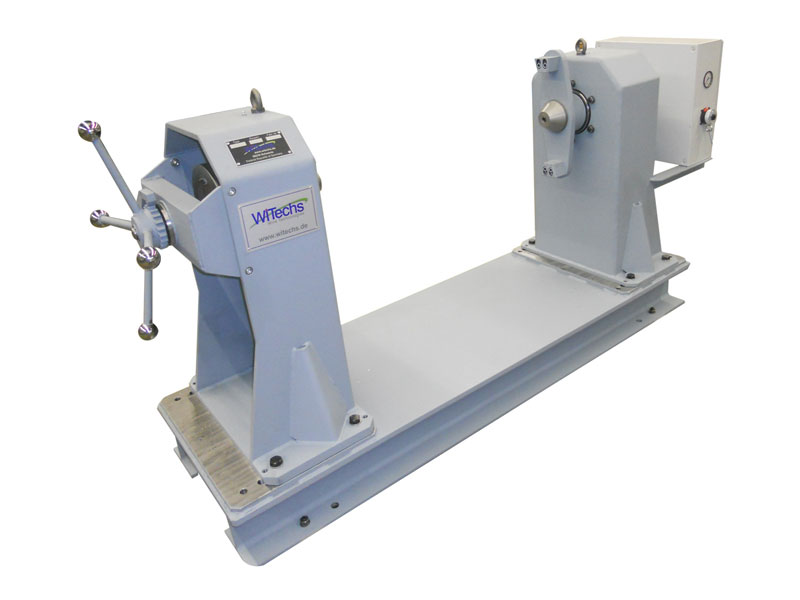

GSA

Wire diameter (low carbon)

Wire diameter (high carbon)

Wire passing speed up to 10,0 m/s

Pay-Off Turntables

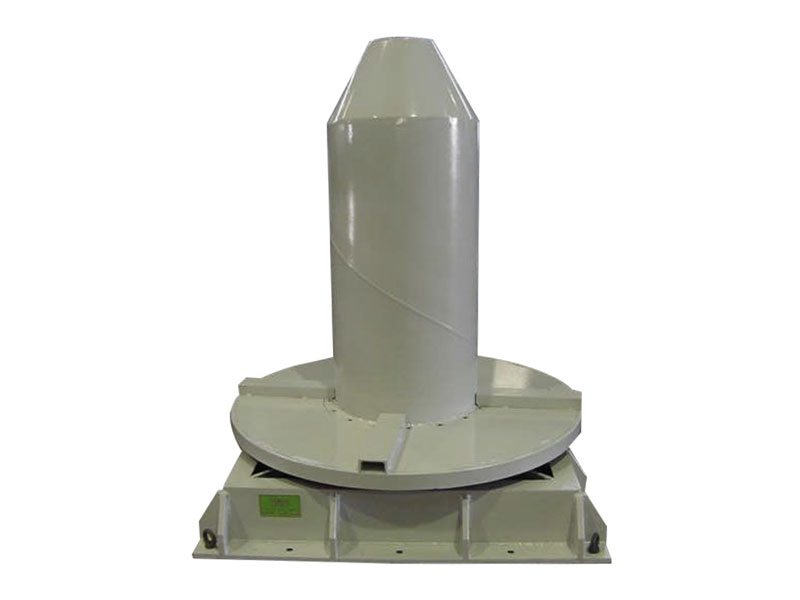

ADT

Wire diameter (low carbon) 3,0 – 20,0 mm

Wire diameter (high carbon) 3,0 – 20,0 mm

Wire passing speed up to 80 min-1

Pay-Off Turntables

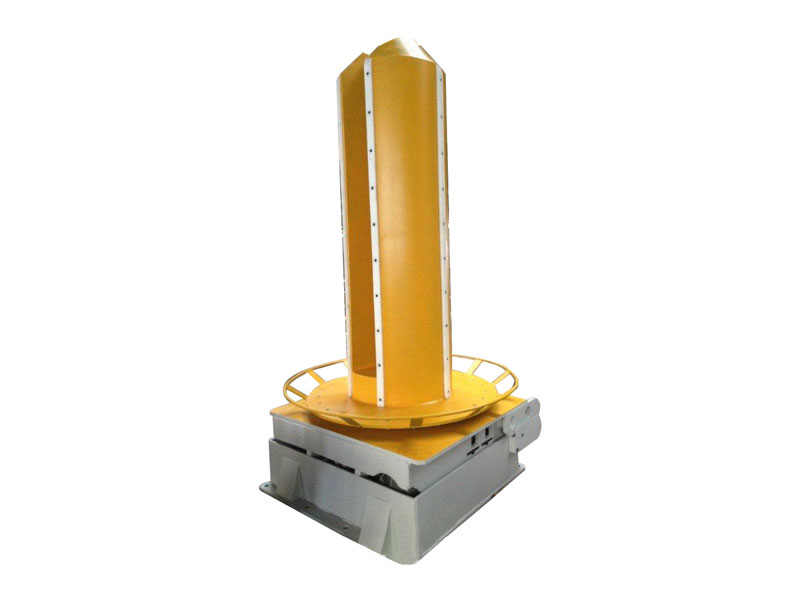

ADT-A

Wire diameter (low carbon) 3,0 – 20,0 mm

Wire diameter (high carbon) 3,0 – 20,0 mm

Wire passing speed up to 80 min-1

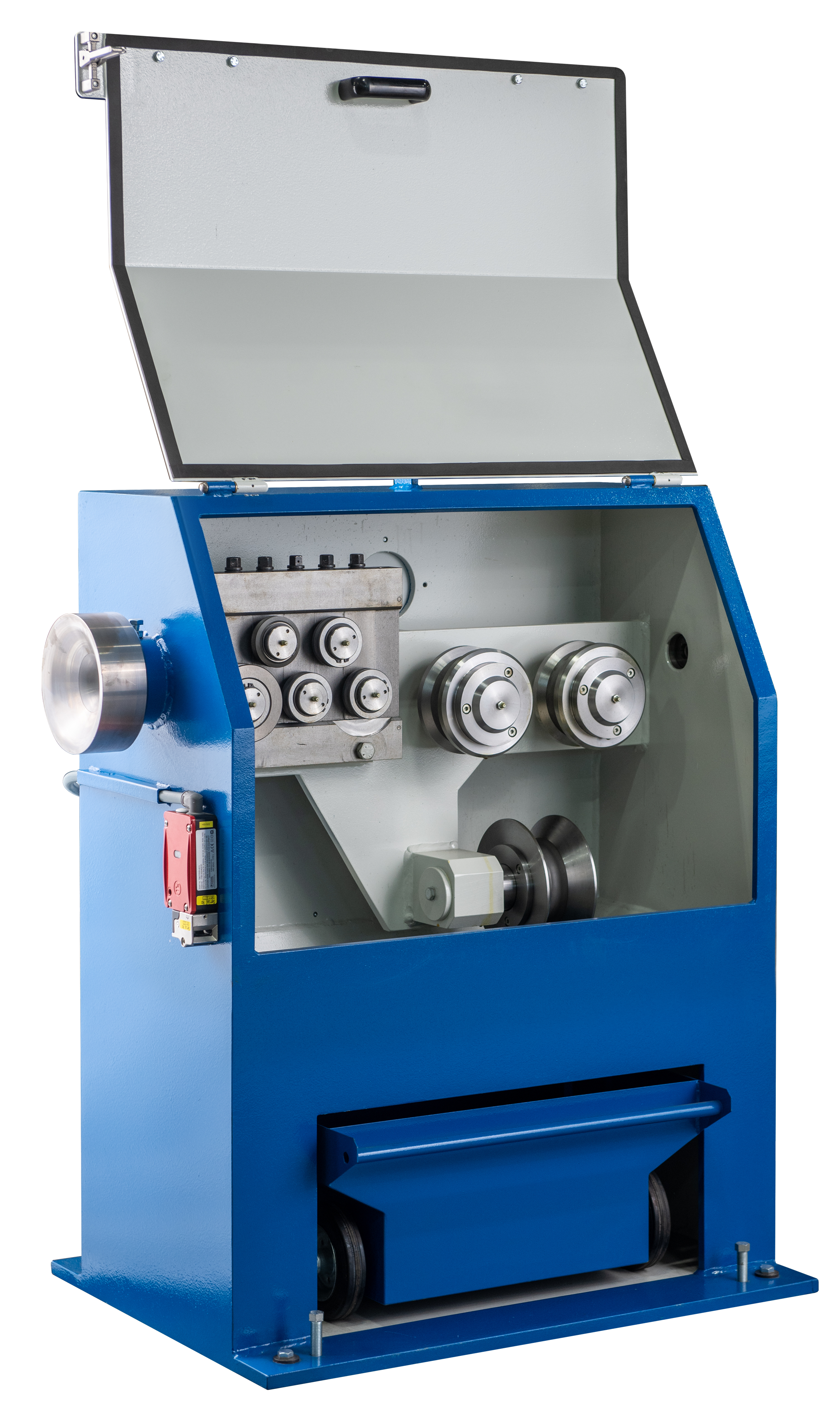

Bending Descaler

WEZ-1Z

Wire diameter (low carbon) 5,5 – 8,0 mm

Wire diameter (high carbon) 5,5 – 6,5 mm

Wire passing speed up to 3,0 m/s

Bending Descaler

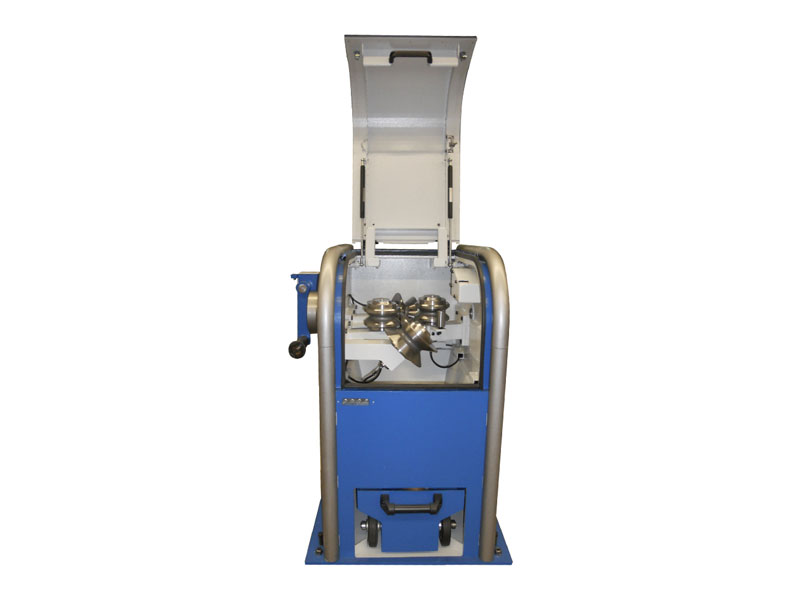

WEZ-1/65Z

Wire diameter (low carbon) 5,5 – 6,5 mm

Wire diameter (high carbon)

Wire passing speed up to 3,0 m/s

Bending Descaler

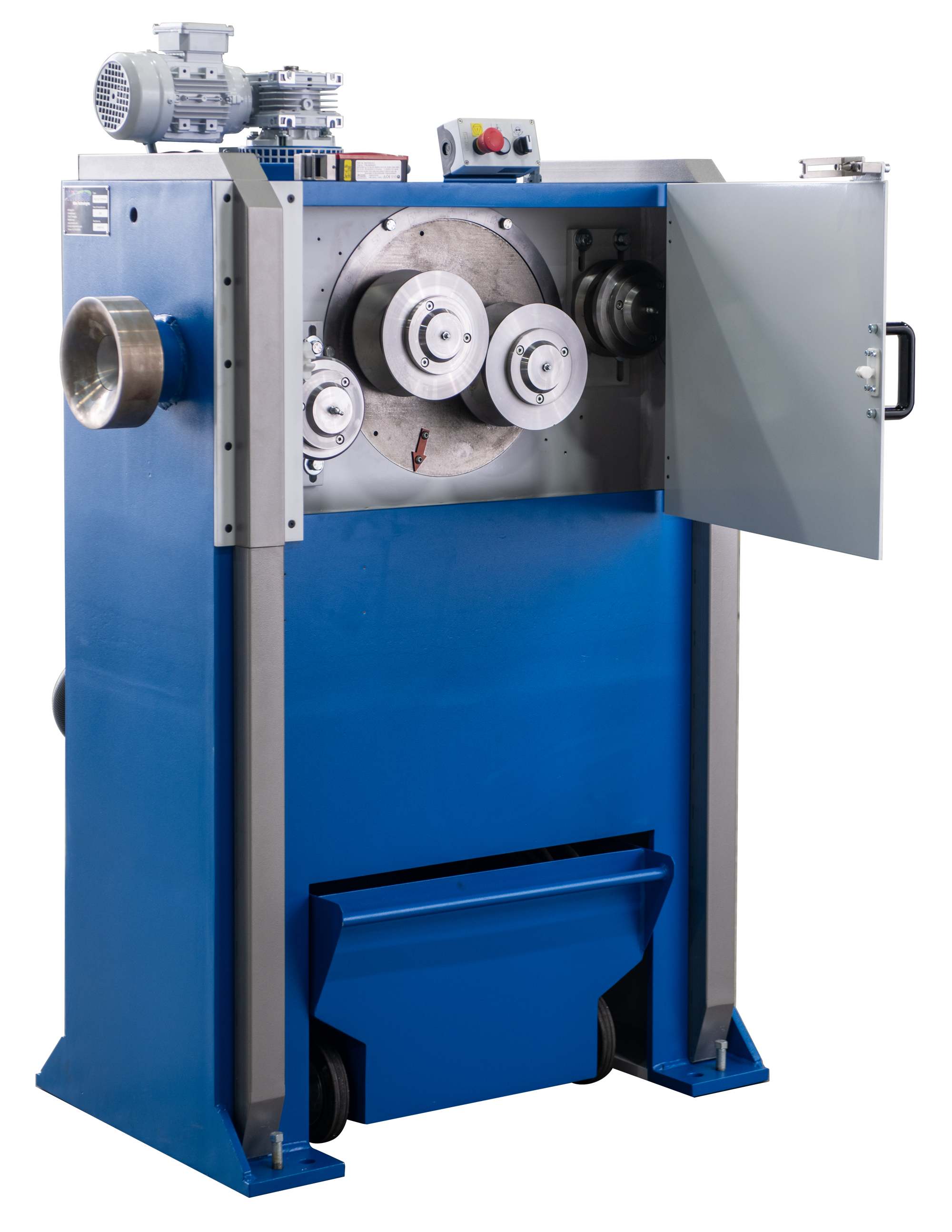

WEZ-3Z

Wire diameter (low carbon) 5,5 – 13,5 mm (opt. 16,0 mm)

Wire diameter (high carbon)

Wire passing speed up to 10,0 m/s

Bending Descaler

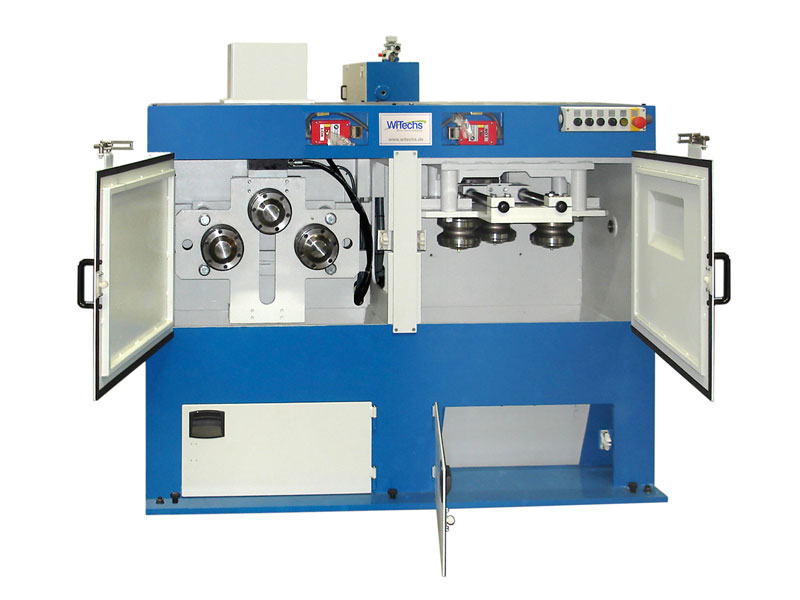

BBE-3/8

Wire diameter (low carbon) 5,5 – 16,0 mm

Wire diameter (high carbon) 5,5 – 16,0 mm

Wire passing speed up to 4,0 m/s

Accessories

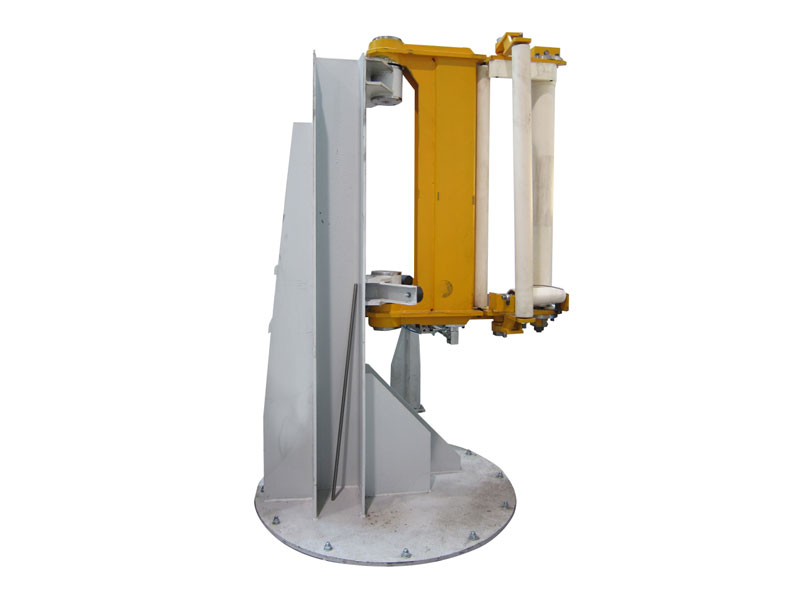

TZ-3

Wire diameter (low carbon) 3,0 – 10,0 mm

Wire diameter (high carbon) 3,0 – 7,0 mm

Wire passing speed up to 3,0 m/s

Accessories

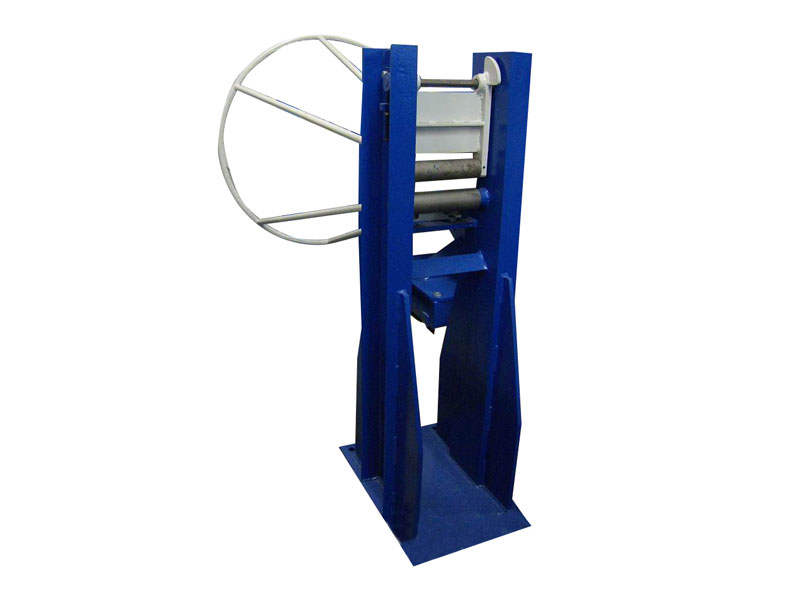

Tangleguard SF

Wire diameter (low carbon) 5,5 – 10,0 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 5,0 m/s

Accessories

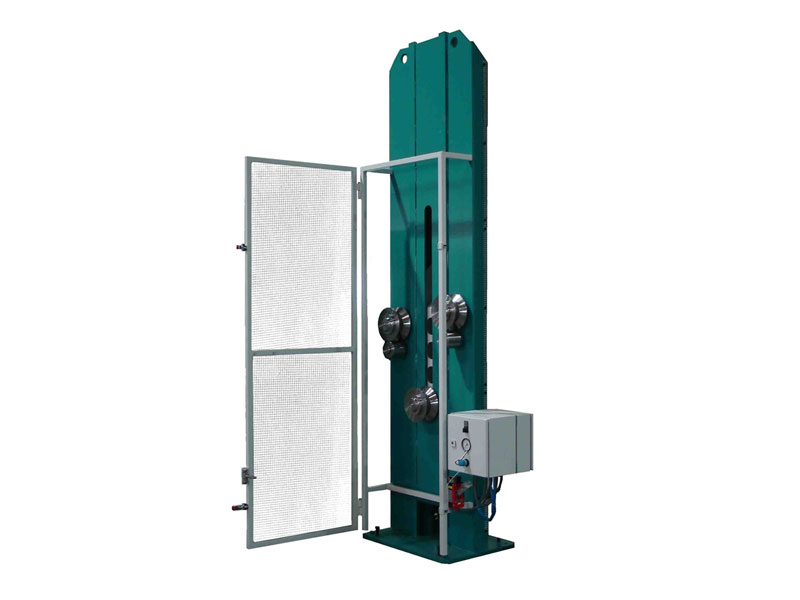

AE-1

Wire diameter (low carbon) 5,5 – 8,0 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 3,0 m/s

Wire Systems

Inline Pre-Treatment System Solution

Wire inlet ø8.0 – 15.0mm

Wire outlet drawing speed up to 10m/s

Wire inlet speed up to 1.5m/s
