Wire Descaling

Before the wire drawing process our machines clean the surface of the wire. This ensures speed in the subsequent process and brings savings too. Be it bending descaling, steel brush descaling or sanding descaling – thorough cleaning increases the drawing speed and the lifetime of the die. The more thoroughly this is done, the faster the process and the better the quality of the end product. Our descaling methods are available for almost any type of wire.

Need technical support?

bbe-312

Bending Descaler

BBE-3/12

Wire diameter (low carbon) 5,5 – 13,5 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

bbe-312

Bending Descaler

BBE-3/17

Wire diameter (low carbon) 5,5 – 18,0 mm

Wire diameter (high carbon) 5,5 – 13,0 mm

Wire passing speed up to 4,0 m/s

bbe-312

Bending Descaler

BDM-2S

Wire diameter (low carbon) 5,5 – 20,0 mm

Wire diameter (high carbon) 5,5 – 15,0 mm

Wire passing speed up to 10,0 m/s

bbe-312

Sanding Descaler

SEZ-2-450

Wire diameter (low carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire diameter (high carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire passing speed up to 4,0 m/s

bbe-312

Sanding Descaler

SEZ-4-300

Wire diameter (low carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire diameter (high carbon) 5,5 – 9,0 mm (opt. 30 mm)

Wire passing speed up to 2,4 m/s

bbe-312

Brush Descaler

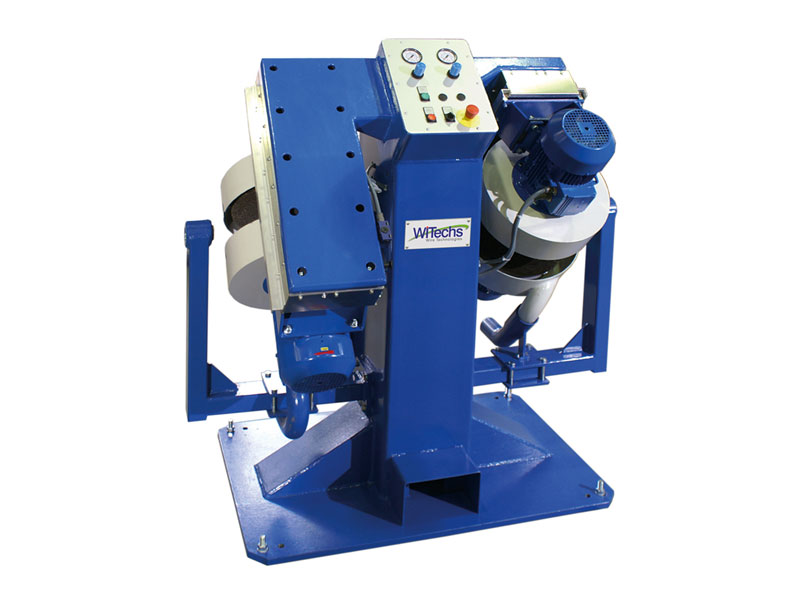

RWCB/400-2

Wire diameter (low carbon) 5,5 – 8,0 mm

Wire diameter (high carbon) 5,5 – 8,0 mm

Wire passing speed up to 4,0 m/s

bbe-312

Brush Descaler

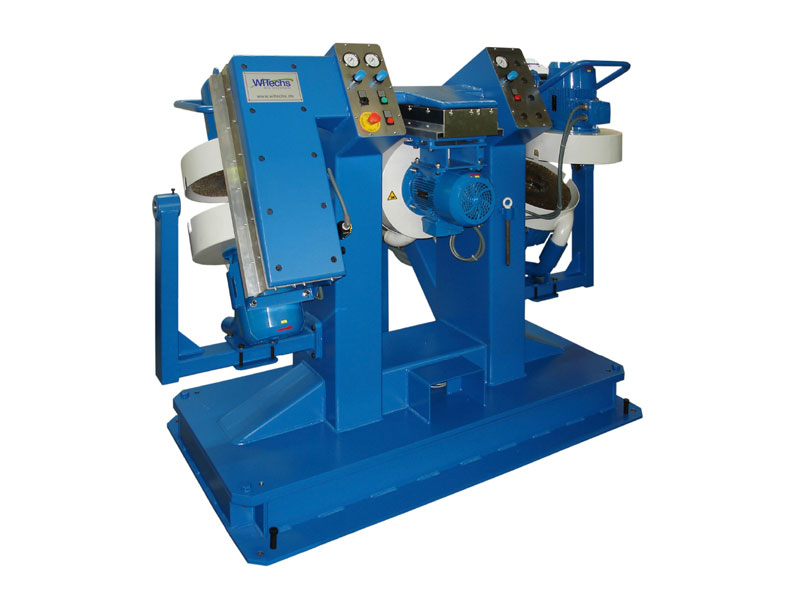

RWCB/400-3

Wire diameter (low carbon) 5,5 – 16,0 mm

Wire diameter (high carbon) 5,5 – 10,0 mm

Wire passing speed up to 4,0 m/s

bbe-312

Brush Descaler

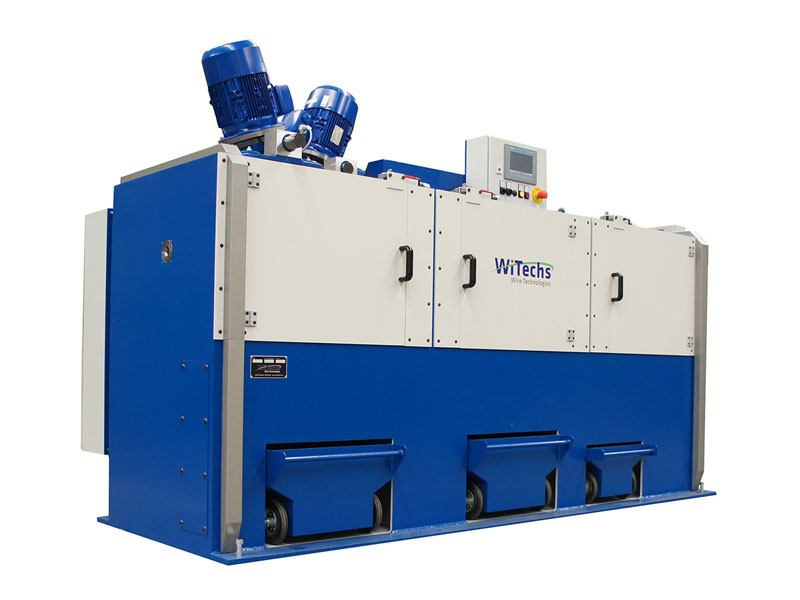

WBE-6L

Wire diameter (low carbon) 5,5 – 10,0 mm (opt. 18 mm)

Wire diameter (high carbon) 5,5 – 10,0 mm (opt. 18 mm)

Wire passing speed up to 4,5 m/s

bbe-312

Brush Descaler

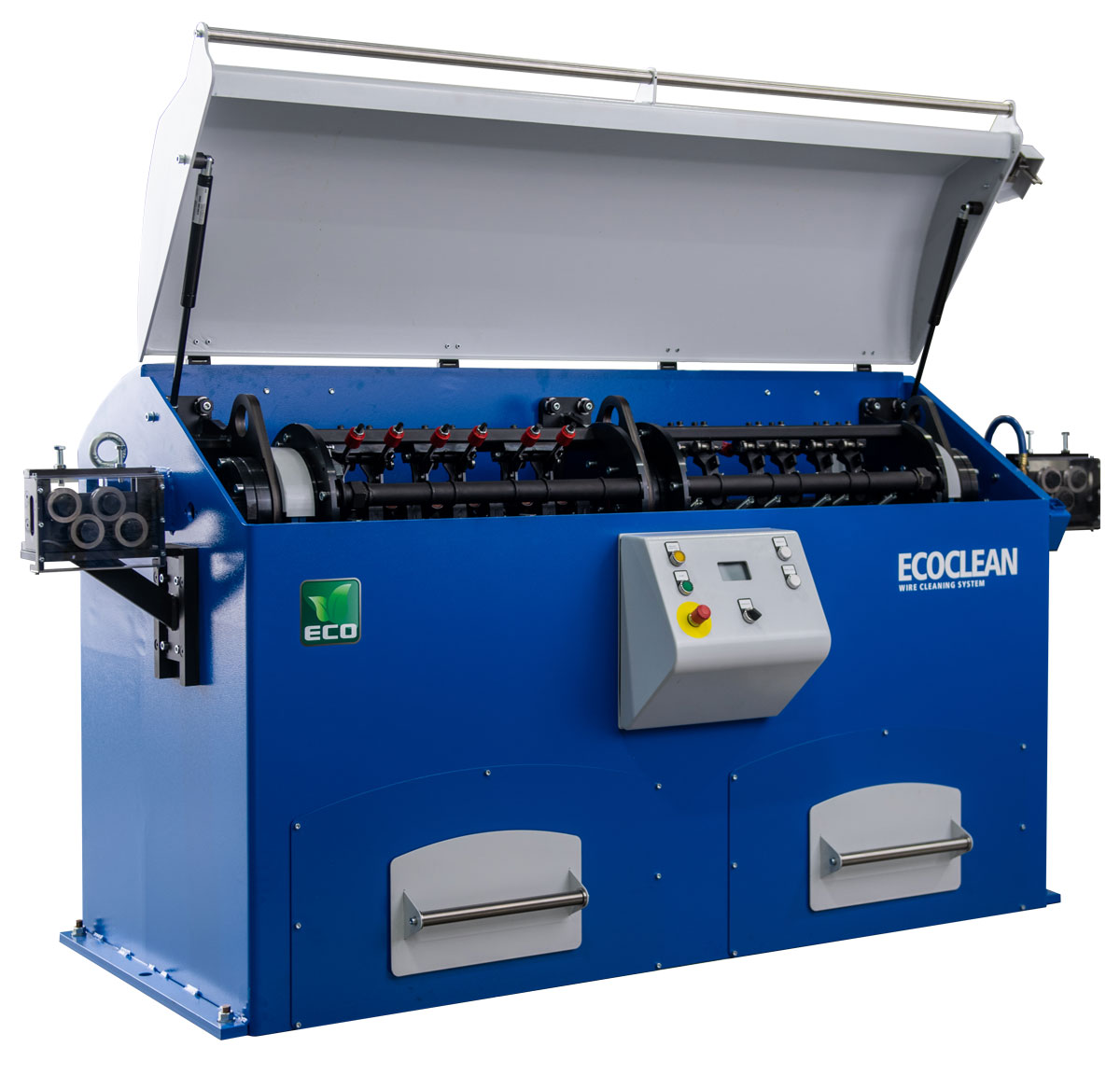

Ecoclean

Wire diameter: (low carbon): 3 – 10 mm

Wire diameter: (high carbon): 3 – 10 mm

Wire passing speed: up to 10,0 m/s

bbe-312

Bending Descaler

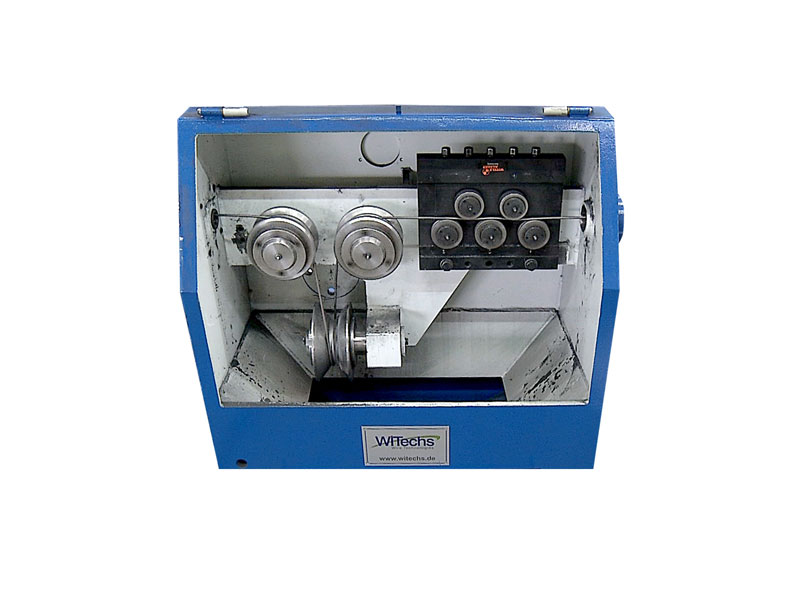

WEZ-1Z

Wire diameter (low carbon) 5,5 – 8,0 mm

Wire diameter (high carbon) 5,5 – 6,5 mm

Wire passing speed up to 3,0 m/s

bbe-312

Bending Descaler

WEZ-1/65Z

Wire diameter (low carbon) 5,5 – 6,5 mm

Wire diameter (high carbon)

Wire passing speed up to 3,0 m/s

bbe-312

Bending Descaler

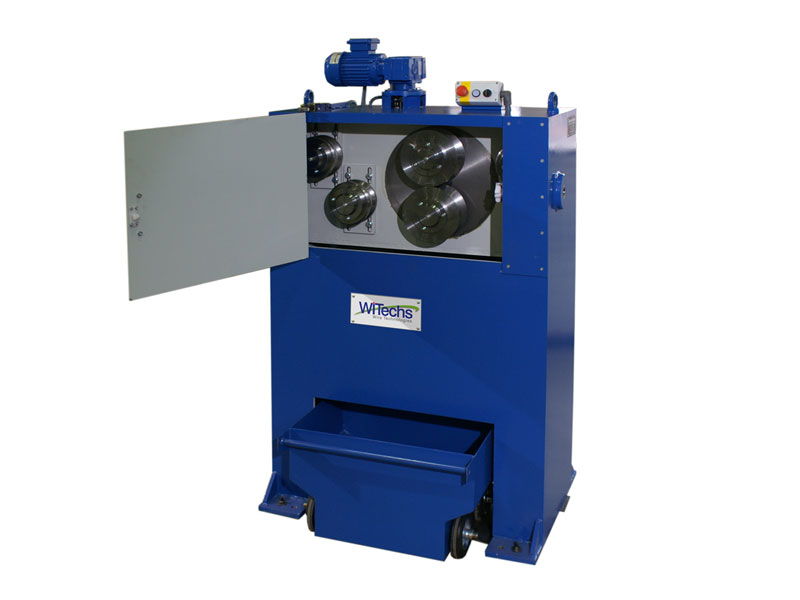

WEZ-3Z

Wire diameter (low carbon) 5,5 – 13,5 mm (opt. 16,0 mm)

Wire diameter (high carbon)

Wire passing speed up to 10,0 m/s

bbe-312

Bending Descaler

BBE-3/8

Wire diameter (low carbon) 5,5 – 16,0 mm

Wire diameter (high carbon) 5,5 – 16,0 mm

Wire passing speed up to 4,0 m/s
